NEWORK Smart Board NewBoard E
- Latest Android 14 + Google EDLA Certified
- AI Octa-Core Processor + 8 GB RAM for Fast Performance
- Smart Touch: Pen, Finger, Palm — All Recognized
- 85% NTSC Color Gamut + 450 Nits Brightness
- Easy Screen Sharing + Quick Controls
- Full-Function USB-C + Front and Rear I/O Ports
- Dual 20 W Front-Facing Hi-Fi Speakers
- 15% Lower Power Consumption + ≤0.5 W Standby
- Latest Android 14 + Google EDLA Certified: Run the latest Android 14 OS with official Google EDLA certification. Access thousands of educational and productivity apps directly from Google Play, making learning, presenting, and collaborating easier and smarter. Enjoy enterprise-grade privacy protection and regular over-the-air software updates.
- AI Octa-Core Processor + 8 GB RAM for Fast Performance:Powered by an advanced AI-driven 8-core CPU and 8 GB RAM, this smart board ensures smooth multitasking, fast app loading, and lag-free performance — even with multiple users or resource-heavy apps.
- Smart Touch w/ Pen, Finger, Palm — All Recognized: Enjoy intuitive, natural writing and drawing. The screen accurately distinguishes between pen, finger, and palm input, supporting up to 10-point writing with near-zero latency. Save notes to the cloud or instantly share via QR code, Perfect for whiteboarding, annotating, and creative collaboration.
- 85% NTSC Color Gamut + 450 Nits Brightness: Bring your content to life with ultra-vivid colors and high brightness. The 85% NTSC color gamut and 450 nits brightness make visuals pop, even in well-lit rooms. Ideal for classrooms, meeting spaces, and dynamic presentations.
- Easy Screen Sharing + Quick Controls: Easily cast content wirelessly from smartphones, tablets, and laptops—with support for up to 16 devices at once. Instantly switch views, share ideas, or review group work. The floating shortcut bar puts essential tools at your fingertips for faster, smarter teaching or presenting.
- Full-Function USB-C + Front and Rear I/O Ports: Enjoy one-cable convenience with a 65W full-function USB-C port that supports charging, video, data, and touch. Combined with front and rear I/O ports, you can easily connect laptops, cameras, microphones, and other devices for seamless integration.
- Dual 20 W Front-Facing Hi-Fi Speakers: Crystal-clear, room-filling sound powered by dual 20-watt Hi-Fi speakers with forward-firing design. Every word, video, and sound effect is delivered with clarity — perfect for engaging lessons, video calls, and presentations.
- 15% Lower Power Consumption + ≤0.5 W Standby: Engineered for efficiency, this smart board uses 15% less power than previous models, helping you save on energy costs while supporting sustainability. In standby mode, it consumes just 0.5 watts or less.
Free & Fast Delivery within 5 days
Personal Live Stream Demo
30 Day Hassie-Free Returns
1 Year Official Warranty
Payment
Fast Shipping - Most Orders Delivered in 5-Days

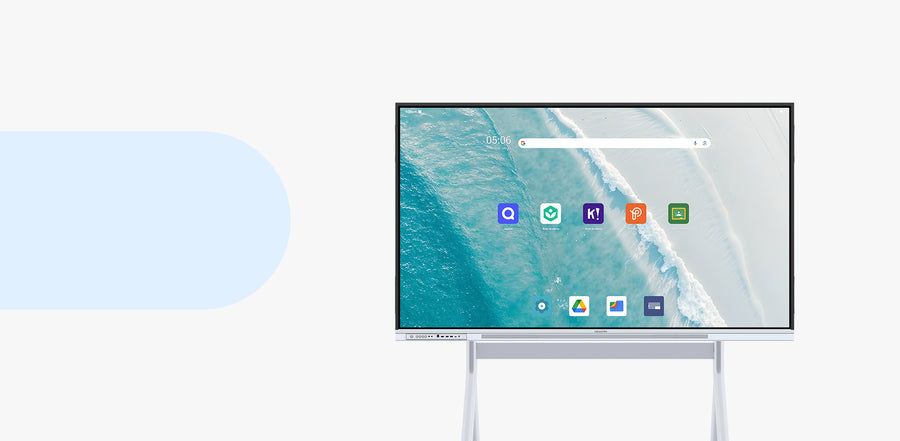

Efficient, all-round solution
Smarter upgrades, evolved experience

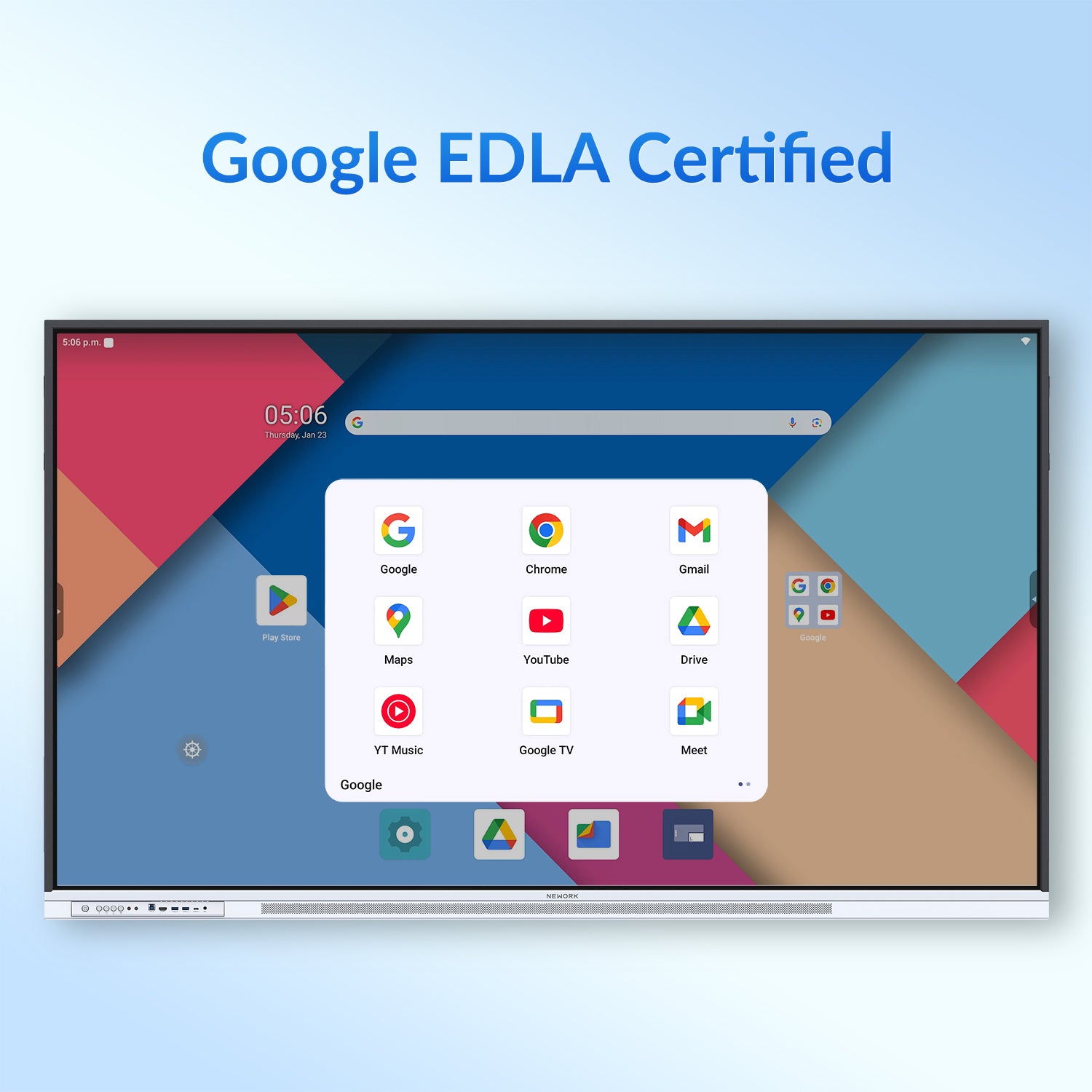

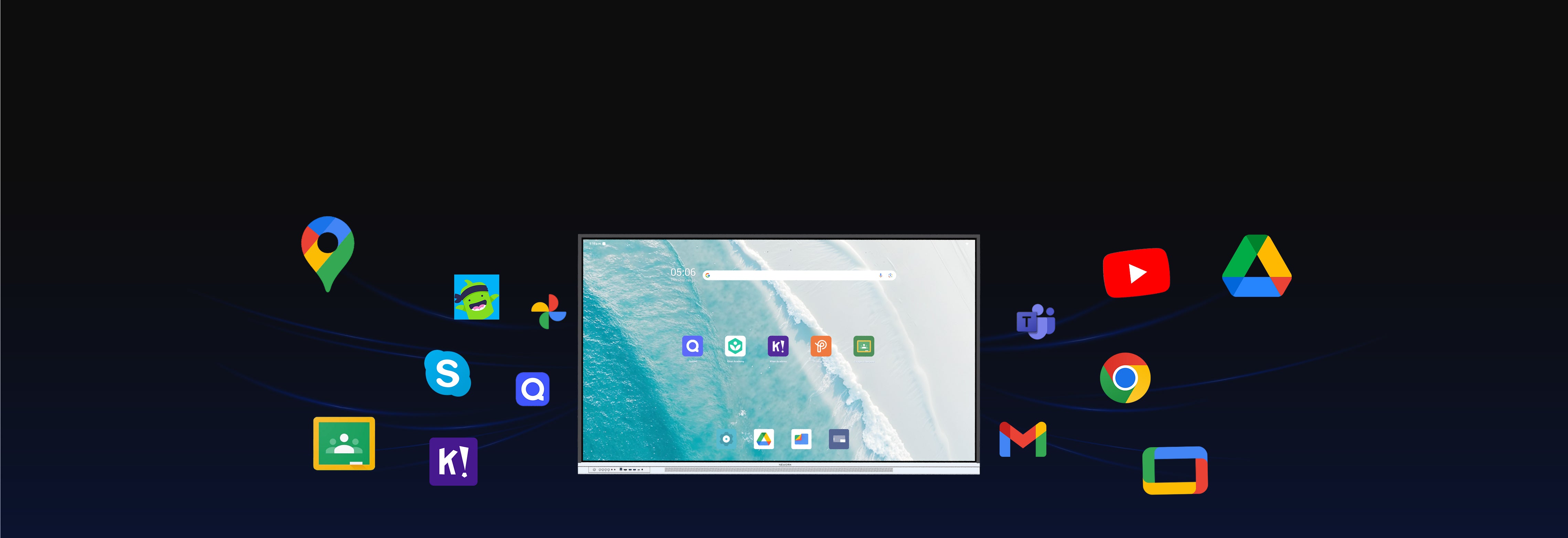

Running the latest Android 14 OS and officially Google EDLA-certified, the NewBoard E-series lets educators and students download thousands of apps directly from the Google Play Store—making your classroom more connected, dynamic, and ready for the future.
With online whiteboarding, team brainstorming comes alive—every idea instantly captured and synced in the cloud.

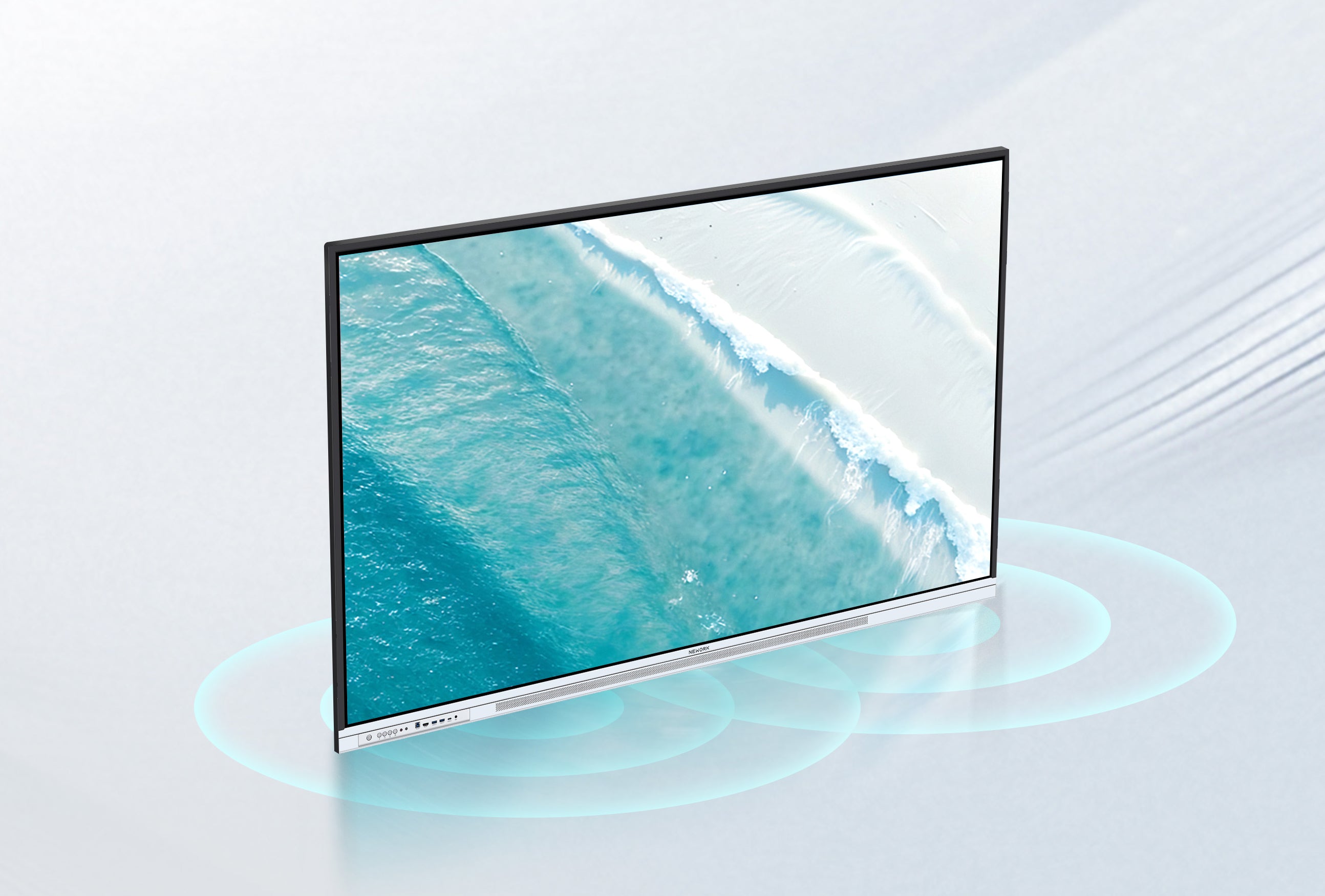

Immersive Sound
Crystal-clear audio that enhances every word
Great visuals deserve great sound. The forward-firing dual 20-watt high-fidelity speakers ensure every voice, video, and sound effect comes through loud and clear. Whether you're teaching a lesson, watching a video, or running a virtual meeting, your voice carries with power and clarity.

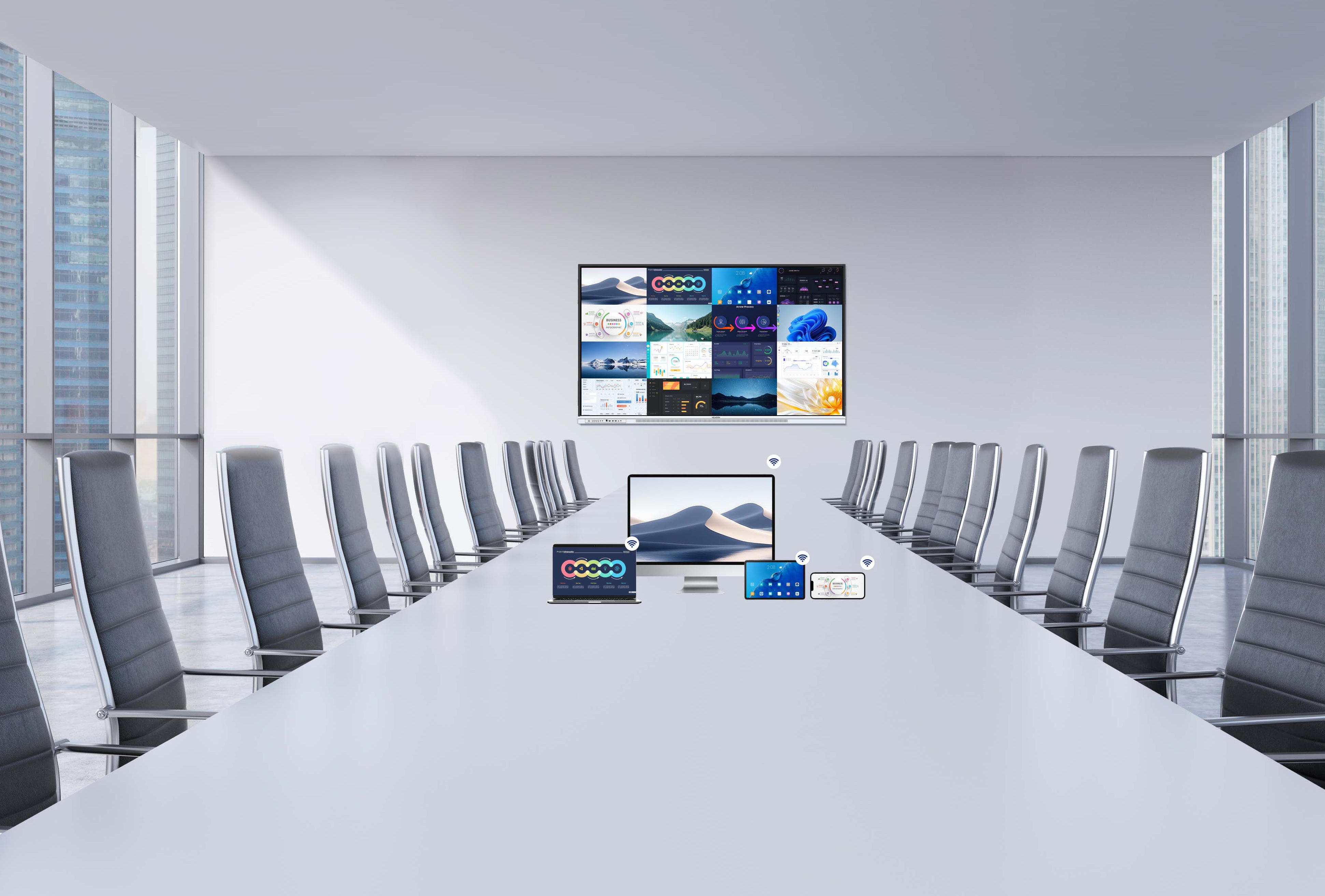

Multi-Device Wireless Casting
Up to 16 devices on screen—at the same time
Built-in Eshare wireless casting supports up to 16 devices simultaneously. Teachers can instantly switch any screen to full view—ideal for group projects, peer reviews, and dynamic discussions. Just press and hold two fingers for 3 seconds to summon a floating shortcut bar—smart, fast, and intuitive.
Ultra-Brilliant Display
Vivid visuals that captivate every student
A great class starts with a great screen. With an 85% NTSC high color gamut and up to 450 nits of brightness, every image, video, and presentation is vibrant, sharp, and easy to see—even in bright classrooms. Students can focus better and stay engaged throughout the lesson with crystal-clear visuals that make learning come alive.
Transform your teaching with a display designed for an immersive and effective learning experience!
4K UHD Clarity – Every lesson, image, and video in stunning detail.
OC Zero Bonding – Reduced glare and enhanced touch precision.
85% Wide Color Gamut – More vibrant, lifelike colors for engaging visuals.
450 nits Brightness – Clear visibility in any classroom environment.
Eco-Friendly Power Efficiency
Save energy without sacrificing performance
Engineered for sustainability, the NewBoard E-series reduces power consumption by 15% while still delivering peak performance. With ultra-low standby power (≤ 0.5 watts), it helps schools cut operating costs and support green campus initiatives. Smarter tech for a smarter, more sustainable classroom.

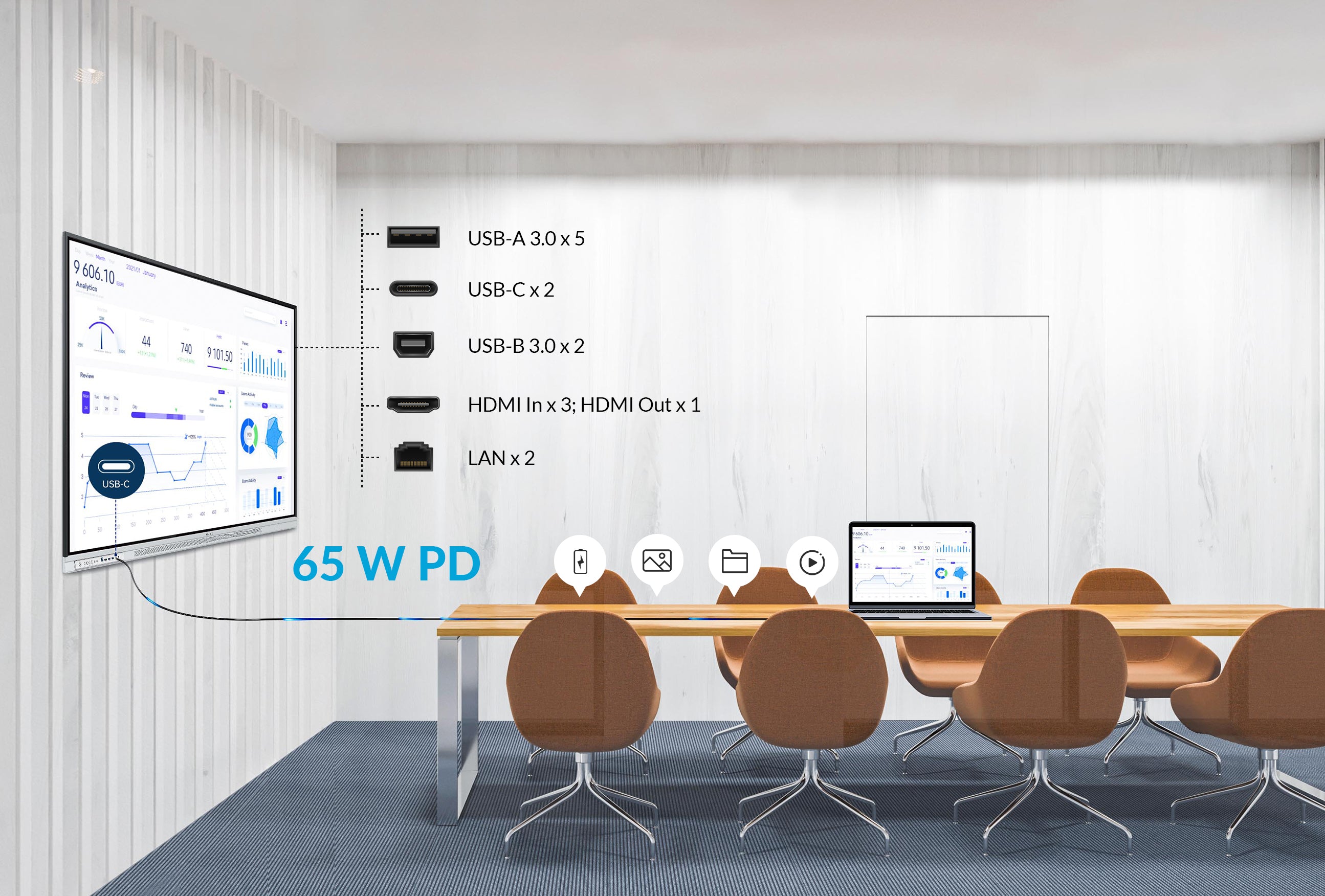

Full Connectivity
Front & rear ports + all-in-one USB-C convenience
Featuring a 65-watt full-function USB-C port that supports video, data transfer, and touch HID through a single cable, along with multiple front and rear I/O ports, the NewBoard E-series ensures seamless connectivity for laptops, mobile devices, and cameras. Flexible connectivity, simplified setup.

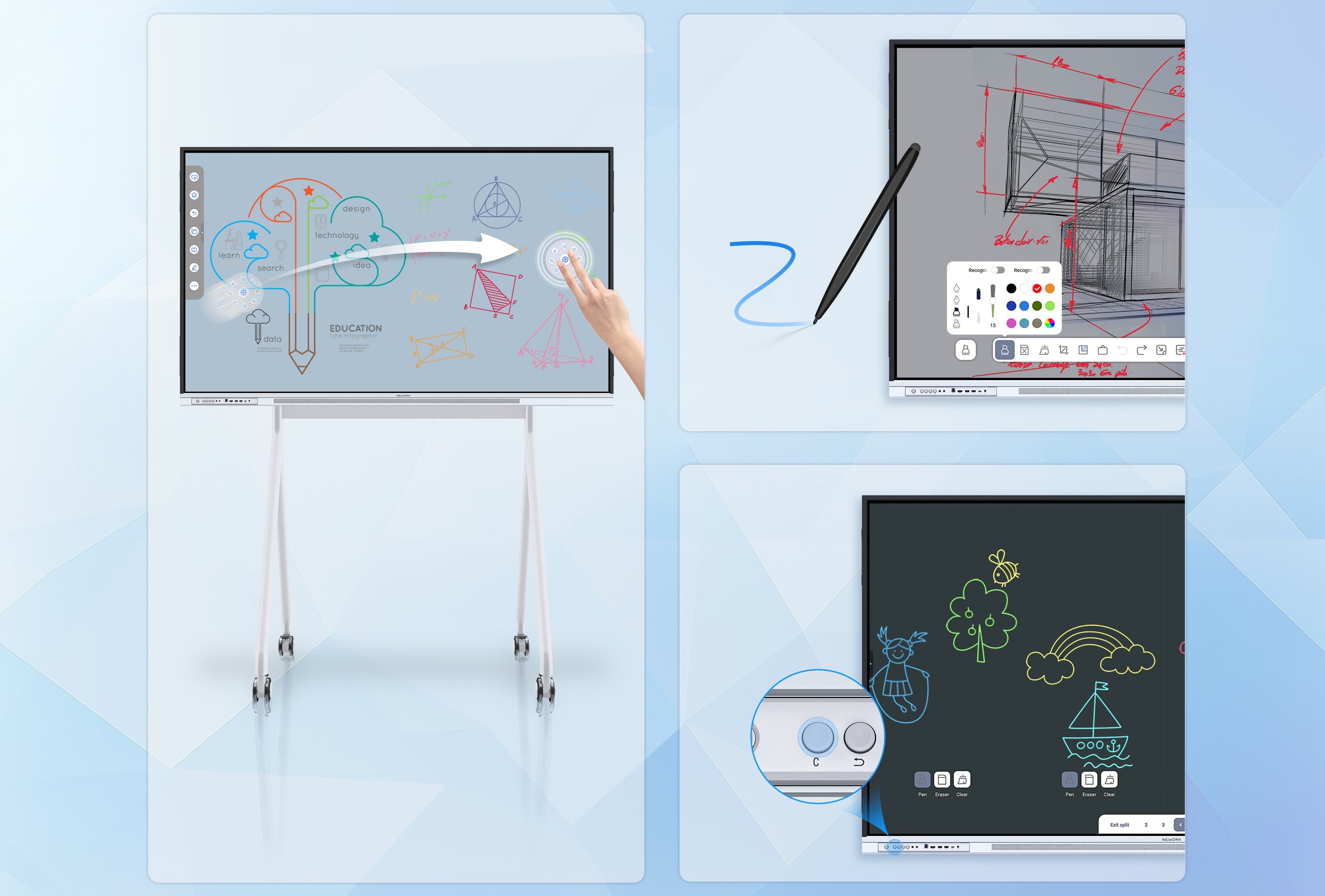

Effortless Interaction
Empower your teaching with smarter, more intuitive tools designed for the modern classroom!
One-Touch C Key – Instantly open preset apps for faster access.
Floating Toolbar – Easily accessible from both sides or summoned with two fingers.
Digital Whiteboard – Insert tools, images, and webpages, then share via QR code.
Wireless Casting – Wirelessly cast up to 16 devices simultaneously.
Annotation – Write and highlight on any page for seamless interaction.
NewBoard E Specifications
| Model | NewBoard 55E | NewBoard 65E | NewBoard 75E |
|---|---|---|---|
| Size | 55-inch | 65-inch | 75-inch |
| Resolution | 3840 X 2160 | 3840 X 2160 | 3840 X 2160 |
| Refresh Rate | 60 Hz | 60 Hz | 60 Hz |
| Brightness Center | 320 cd/m² (Typical) | 450 cd/m² (Typical) | 450 cd/m² (Typical) |
| Contrast Ratio (Typical) | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle H/V (Typical) | 178°/178° | 178°/178° | 178°/178° |
| Color Gamut (Typical) | 81.58% NTSC | 85% NTSC | 85% NTSC |
| Anti-Glare | Yes | Yes | Yes |
| Anti-Fingerprint | NIL | Yes | Yes |
| Touch Surface Hardness | 8H (Pencil) | 9H (Pencil) | 9H (Pencil) |
| Touch Android Points | 10 | 50 | 50 |
| Accuracy (in/mm) | ±0.039 in / ±1 mm (Central 90% Area) | ±0.039 in / ±1 mm (Central 90% Area) | ±0.039 in / ±1 mm (Central 90% Area) |
| Minimum Object Size | 0.079 in (2 mm) | 0.079 in (2 mm) | 0.079 in (2 mm) |
| Recognizable Object | Pen/Finger/Palm | Pen/Finger/Palm | Pen/Finger/Palm | Speaker Position | Forward-Firing at the bottom | Forward-Firing at the bottom | Forward-Firing at the bottom | Speaker Max Power | 16 W x 2 | 20 W x 2 | 20 W x 2 | Wi-Fi Standard | Wi-Fi 5 + Wi-Fi 6 | Wi-Fi 5 + Wi-Fi 6 | Wi-Fi 5 + Wi-Fi 6 | Encryption Mode | Support WPA2-Enterprise/WPA3-Enterprise et. | Support WPA2-Enterprise/WPA3-Enterprise et. | Support WPA2-Enterprise/WPA3-Enterprise et. | Bluetooth Version | 5.2 | 5.2 | 5.2 | Memory | 8 GB | 8 GB | 8 GB | Storage | 64 GB | 64 GB | 64 GB | Operating System | Android 14 (EDLA Optional) | Android 14 (EDLA Optional) | Android 14 (EDLA Optional) | Key Buttons | Power | Power/Home/Return/Set/Custom | Power/Home/Return/Set/Custom | Eshare | Yes | Yes | Yes | Whiteboard | Yes | Yes | Yes | Front Inputs and Outputs | USB-C (DP1.2, Touch,USB 2.0, LAN-100 Mbps, USB-PD 65 W Max)x1, HDMI In x1,Touch x1, USB-A 3.0 x 2 | USB-C (DP1.2, Touch,USB 2.0, LAN-100 Mbps, USB-PD 65 W Max)x1, HDMI In x1,Touch x1, USB-A 3.0 × 2, Mic In x 1 | USB-C (DP1.2, Touch,USB 2.0, LAN-100 Mbps, USB-PD 65 W Max)x1, HDMI In x1,Touch x1, USB-A 3.0 x 2, Mic In x 1 | Rear Inputs and Outputs | HDMI In x 2, DP In x 1, VGA In x 1,USB-C x 1, USB-A 3.0 x 3, Touch x 1, HDMI Out x 1,RS-232 x 1 SPDIF Out x 1, Audio Line In x 1 Audio Line Out x 1, LAN × 2. HDMI In support HDCP 2.2. | HDMI In x 2,DP In x 1, VGA On x 1,USB-C x 1, USB-A 3.0 × 3,Touch x 1, HDMI Out x 1,RS-232 × 1, SPDIF Out x 1, Audio Line In x 1. Audio Line Out x 1, LAN × 2. HDMI In support HDCP 2.2. | HDMI In x 2,DP In x 1, VGA On x 1,USB-C x 1, USB-A 3.0 x 3, Touch x 1, HDMI Out x 1,RS-232 × 1. SPDIF Out x 1, Audio Line In x 1, Audio Line Out x 1, LAN x 2. HDMI In support HDCP 2.2. | Touch Cable | 1 (9.8 ft / 3m,USB 2.0 A-B) | 1 (9.8 ft / 3m,USB 2.0 A-B) | 1 (9.8 ft / 3m,USB 2.0 A-B) | HDMI Cable | 1 (9.8ft / 3m,HDMI Ver 2.0) | 1 (9.8ft / 3m,HDMI Ver 2.0) | 1 (9.8ft / 3m,HDMI Ver 2.0) | USB-C Cable | 1 (6.6ft / 2m,USB-PD 65 W) | 1 (6.6ft / 2m,USB-PD 65 W) | 1 (6.6ft /2 m,USB-PD 65 W) | US Power Cord | 1 (6.6ft / 2m,US Power Plug Cable) | 1 (6.6ft / 2m,US Power Plug Cable) | 1 (6.6ft / 2m,US Power Plug Cable) | Pens | 1 | 1 | 1 | Infrared Remote Control | 1 | 1 | 1 | AC Input | 100-240 VAC 50/60 Hz with AC Switch | 100-240 VAC 50/60 Hz with AC Switch | 100-240 VAC 50/60 Hz with AC Switch | Power Consumption (Eco mode) | 139 W | 145 W | 175 W | Power Consumption (Full load) | 219 W | 220 W (w/o OPS) | 270 W (w/o OPS) | Power Consumption (Standby mode) | <=0.5 W | <=0.5 W | <=0.5 W | Wall-mounted by Landscape | Yes | Yes | Yes | VESA Mounting (mm) | 400 × 400 mm | 600 × 400 mm | 800 × 400 mm | Outline Dimension (w/o wall mount)(L x H x D) | 49.72 x 30.58 x 3.45 in (1263 × 776.8 × 87.6 mm) | 58.42 x 35.55 x 4.37 in (1483.9 × 902.9 × 111 mm) | 67.16 × 40.43 × 4.37 in (1705.8 × 1026.8 × 111 mm) | Packing Dimension (L x H x D) | 55.24 × 36.1 × 8.86 in (1403 × 917 × 225 mm) | 64.17 × 40 × 9.72 in (1630 × 1015 × 247 mm) | 73.23 × 44.88 × 9.72 in (1860 × 1140 × 247 mm) | Net Weight | 55.45 lbs (25.15 kg) | 76 lbs (34.5 kg) | 101.4 lbs (46 kg) | Gross Weight | 78.37 lbs (35.55 kg) | 112.4 lbs (51 kg) | 145.5 lbs (66 kg) |
Request a Demo
What can I expect?
✔ Personalized Demo Tailored to Your Needs
✔ Real-World Scenarios for an Intuitive Experience
✔ Expert Answers to All Your Questions
FAQ
Does this smart board support video conferencing?
Yes, it does. You can download popular conferencing apps like Zoom or Microsoft Teams directly from the Google Play Store. You can also connect a camera and microphone using the built-in USB and HDMI ports.
Are software updates provided regularly?
Yes. This digital whiteboard is Google EDLA-certified, which means it receives regular system updates and enhanced privacy protection, ensuring long-term reliability and performance.
How do I connect my laptop for screen sharing?
You can connect your laptop using the full-featured USB-C port, HDMI, or USB-A. Wireless screen sharing is also available via Eshare, supporting up to 16 devices sharing at the same time.
